In my first blog about value formatting in ag-Grid, I explained how to format numbers, strings and currencies and gave three examples for that. Whilst we can all agree that I did an excellent job, I missed one very important use case: Dates.
Since dates are a part of everyday life, and ironically, their layout is not standardised, they're a perfect candidate for formatting. In this blog I'll be running through not only how to format them, but also how a
valueFormatter can be used in conjunction with sorting and filtering dates as well.
I've built a sample to illustrate the approaches I'll be describing in this post. See it in action below:
In this blog, we'll be going over:
For those of you who were wondering why this article took so long: I made a video about all the subjects discussed in this and the previous blog. So, if you like to consume your media audiovisually, check it out!
For this example, I decided to generate the dates as a string because it allows me to show you how easy it is to change between the formats for different applications.
Now, let's look at the column definitions of the Date and Date Formatted columns:
This looks like a lot of code, but don't worry, it's actually quite simple. For now let's focus on everything above the
comparator. Just like in the previous blog, we have a reference to an external
valueFormatter, seen below:
What's going on here is
params.data.date is being split at every instance of the "
/" character, giving us an array with three elements, day as
dateParts, month as
dateParts and year as
datePart. These parts are then being re-combined together with a "

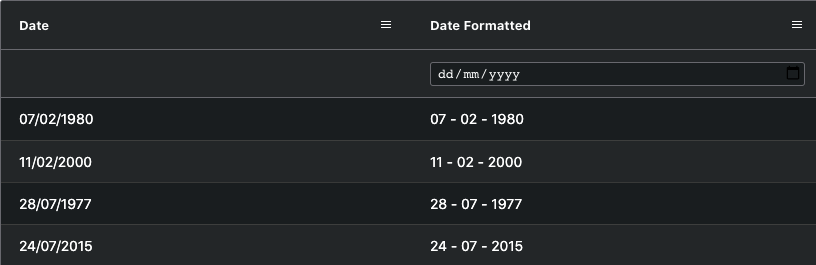

-" character as separators to give us our formatted data:

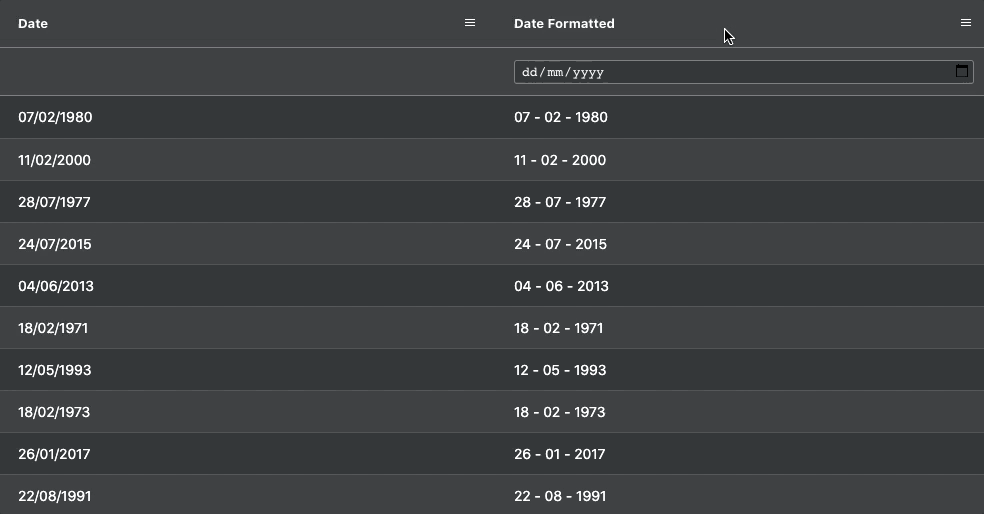

Sorting Formatted Dates
Next, we'll look into the comparator. For those of you that don't know, a comparator is, I won't go too far into it, suffice to say, it's a tool for sorting things, numerically, alphabetically —in any way you want.
If the date data provided was already a JS date object, we wouldn't need to provide a custom comparator, ag-Grid already has this feature built in, But when given a string like "06/02/2017", you need to tell the grid how to split it and for instance, whether '02' is a month or a day.
The comparator, along with its
_monthToNum() helper, change the date string and convert that string to a number that can then be compared to other dates.
Filtering Formatted Dates
Finally, let's take a look at filtering and the filtering params. We can think of filtering as similar to a sort, because it's also a comparison operation, we're checking the data against an input.

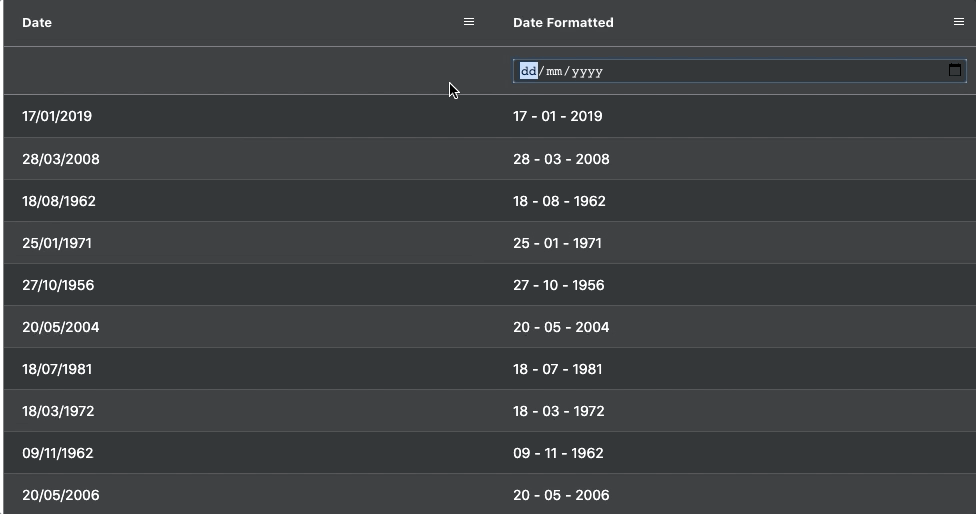

From the above gif, you'll note a slight delay before filtering occurs, this is down to a
filterParams option called
debounceMS which allows us to set a slight debounce giving us more time to type what we want to filter.
Furthermore, the AND/OR conditions of the filter have also been suppressed, giving us a clean and simple filtering experience which only returns exact matches.
One last UX addition was the floating filter which just makes so we don't have to go through the hamburger menu to get filtering.
To achieve the above effect, I used the grid's built in
/" and creating a cellDate like so:
filterLocalDateAtMidnight. This input — converted into a JS date object by the filter — is then provided to the our custom comparator along with the cell value which we'll be using for the comparison.
And there we go, that's formatting with dates. The great and mysterious, actually quite simple when broken down. But don't go thinking this is it, like I mentioned in the article, the format is up to you, you can do this with date objects, strings, even integers. What's important is how the data is manipulated and compared.
To find out more about
valueForamtters and to get an in-depth understanding of how they work, check out our example filled documentation here. You can also find our documentation for sorting & filtering on the main ag-Grid site as well.
Lastly if you're new to ag-Grid and want to see what all the hubbub is about, why not try it out — for free — by checking out our getting started guides.
